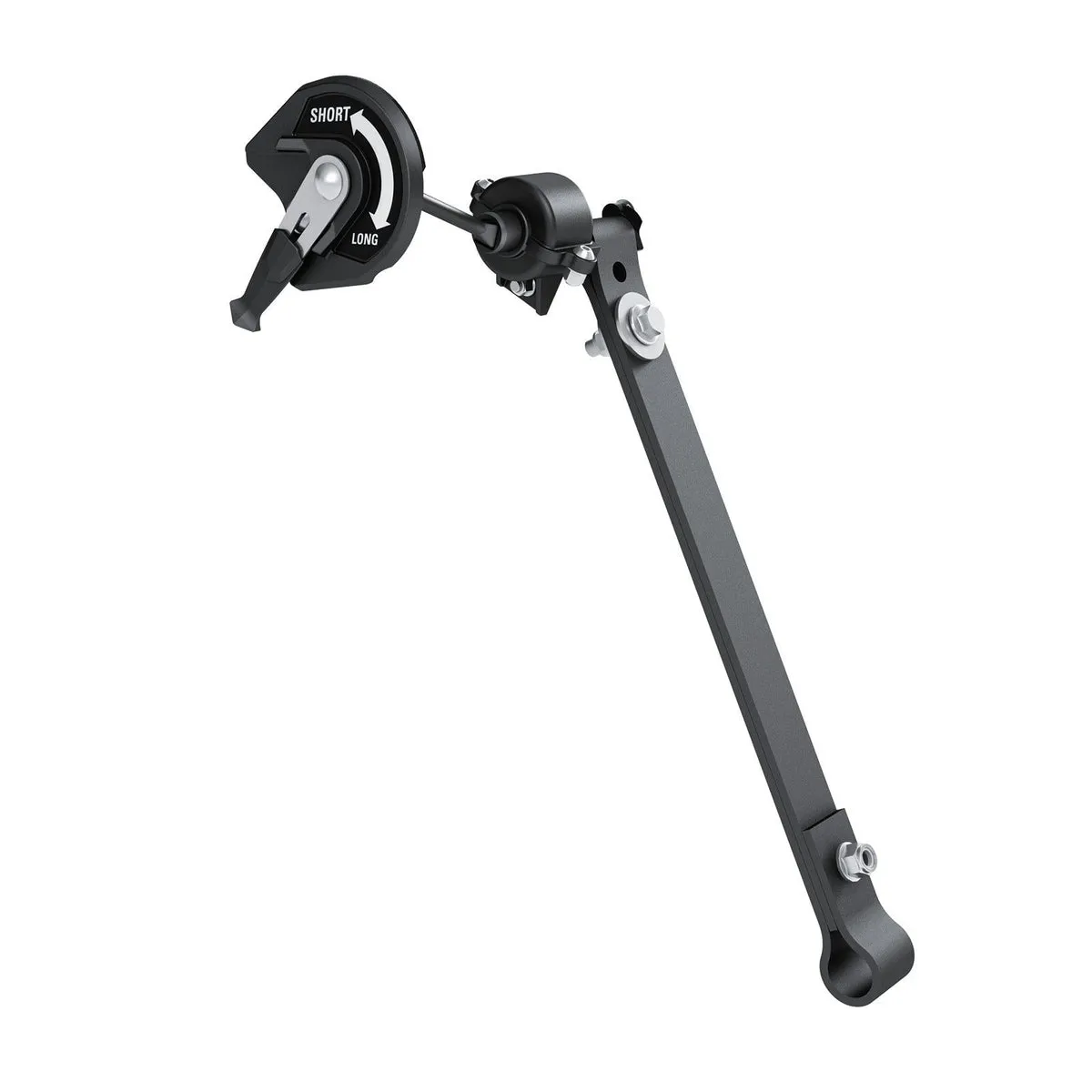

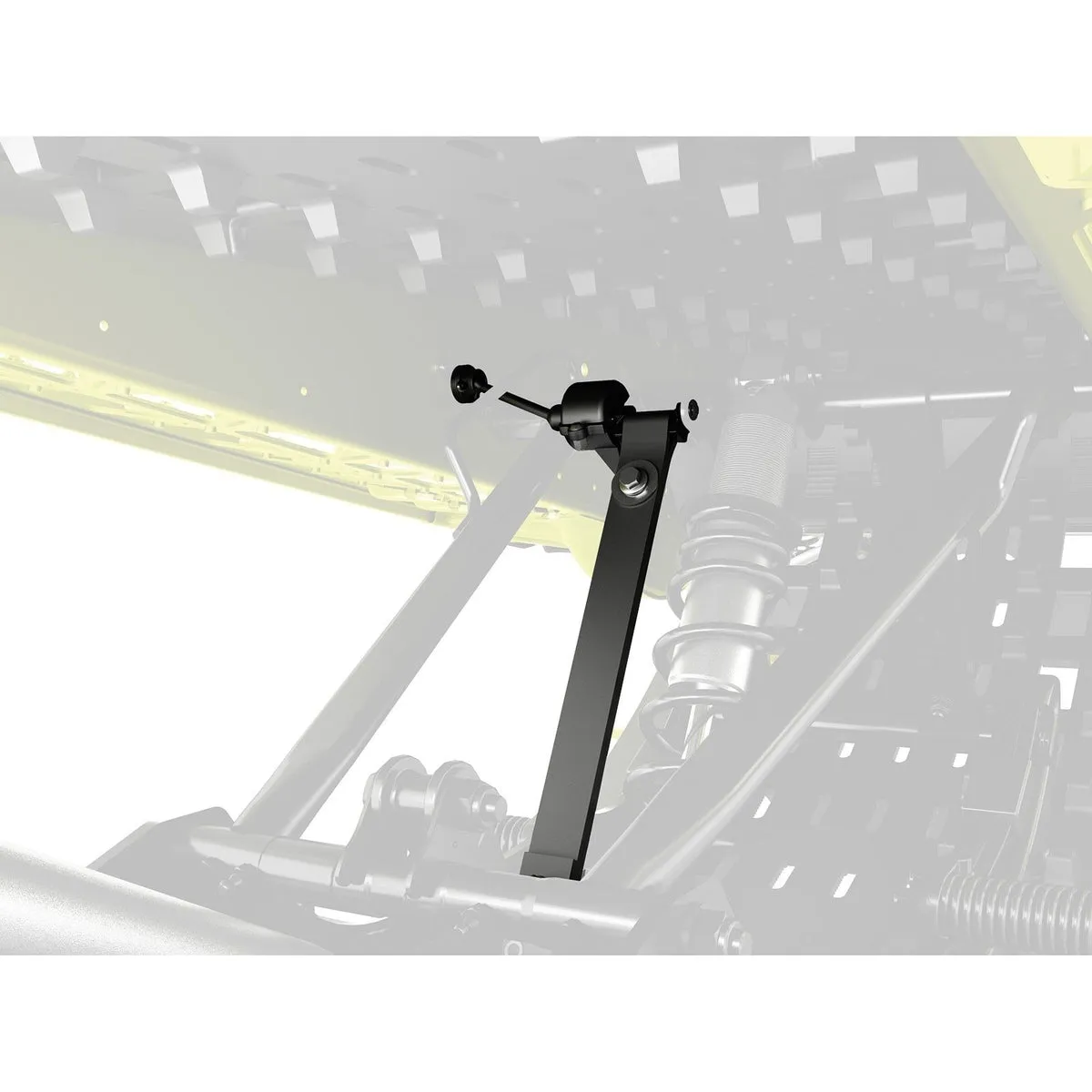

Ski-Doo tMotion Adjustable Limiter

860201105:

• Quickly change limiter strap length by flipping a lever, to tune ride and handling to snow conditions and terrain.
• Shortening keeps the front end lower and improves track approach angle.
• Longer increases transfer and lifts the front end higher.
• Adjustment range is equivalent to 2 holes on a conventional strap (1.3”/34 mm).
• Slim, non-intrusive design.
• 2 settings to choose from: holes 3 to 5 or 2 to 4 (compared to conventional strap hole positions).
• US patent 9022156.
• Not compatible with Tunnel Reinforcement (860201636, 860201638, 860201730, 860201783, 860201734)

860201492 & 860201861:

• Quickly change limiter strap length by flipping a lever, to tune ride and handling to snow conditions and terrain.
• Shortening keeps the front end lower and improves track approach angle.
• Longer increases transfer and lifts the front end higher.
• Adjustment is equivalent to 2 holes on a conventional strap (1.3”/34 mm).
• Slim, non-intrusive design.
• 2 initial settings to choose from: holes 3 to 5 or 2 to 4 (compared to conventional strap hole positions).
• US patent 9022156.

860201349:

• Includes front arm and all the parts and features of the 860201105 kit.

Fits on:

860201105: REV-XM 2016 & up

860201492: REV Gen4 (Narrow) with tMotion and cMotion rear suspensions, 2018 and prior

860201861: REV Gen4 (Narrow) with tMotion and cMotion rear suspensions (except Freeride 146" & Backcountry X-RS)

860201349: Retro Fit Kit REV-XM 2015 & prior

860202439 : REV Gen5 (Deep Snow)
